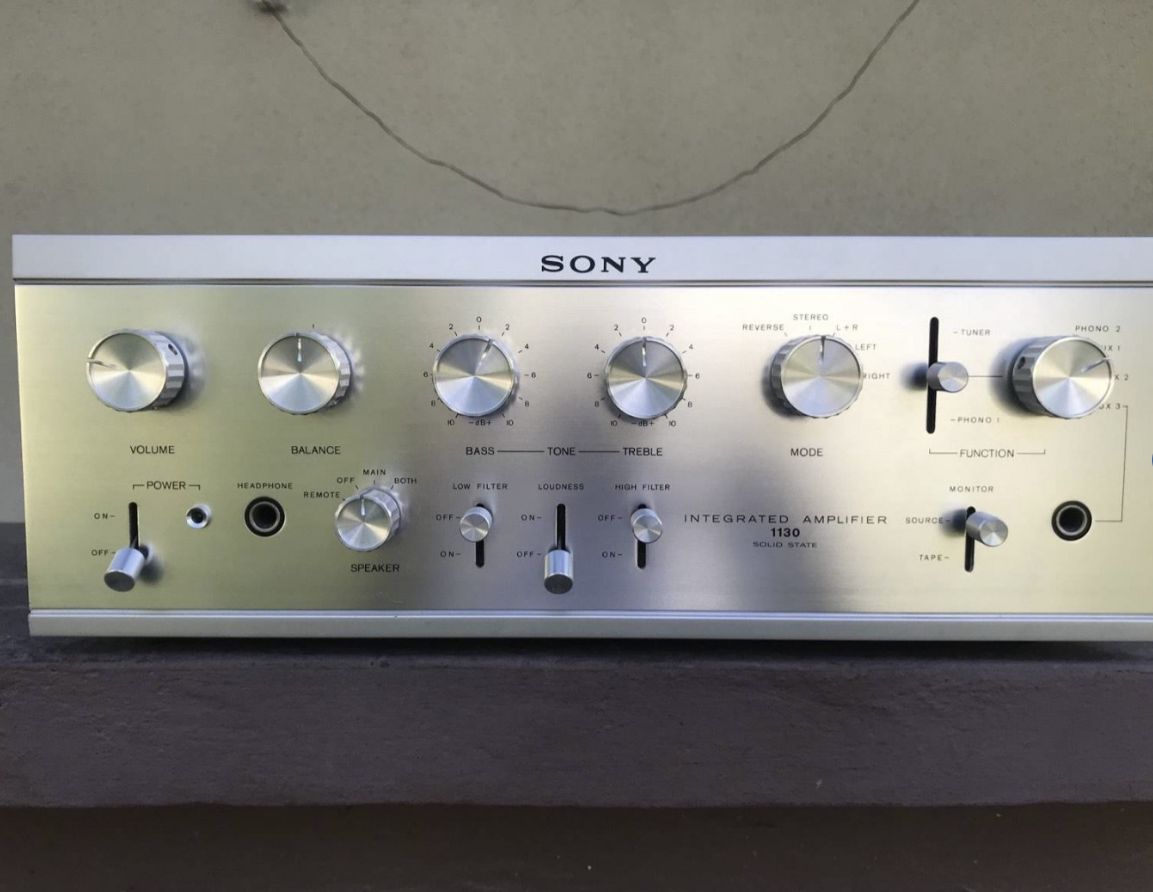

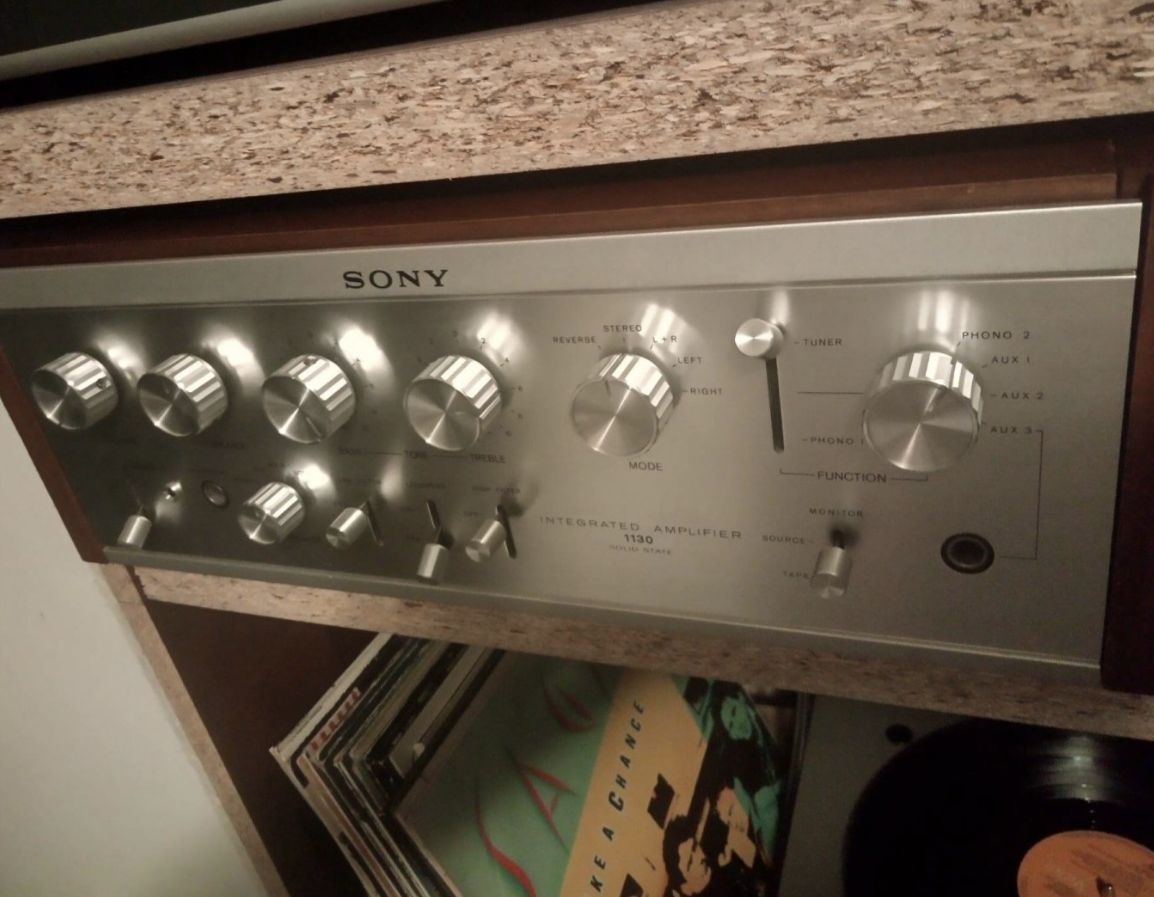

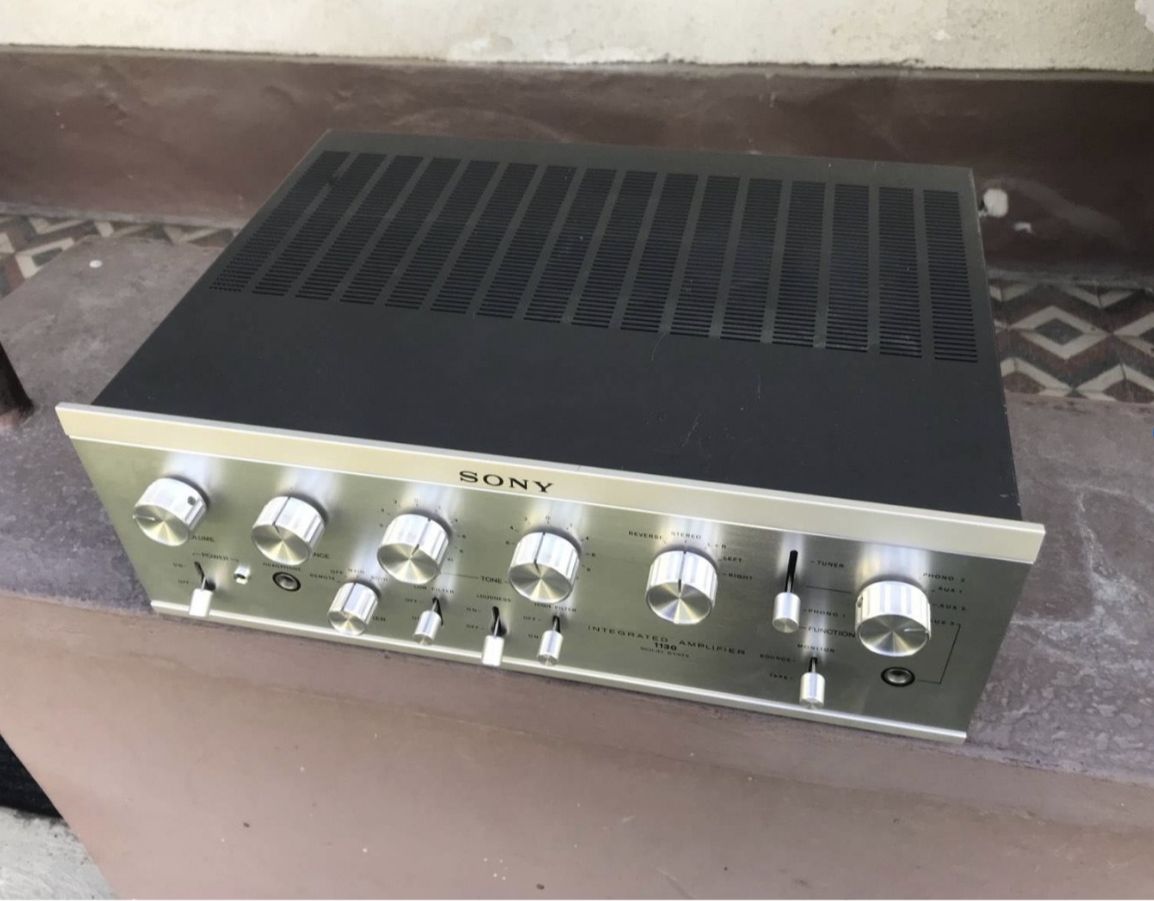

Sony Ta 1130 vintage amplifier

The legendarily good-sounding stereo amplifier from 1971 mentioned in the title is for sale.
At the end of the 80s, Sony engineers returned to this when designing the E series.
It enjoys a very well-preserved aesthetic condition and flawless technical condition.
It can be viewed and listened to at my place.
Mail can be arranged.
In the 60 km area of ​​Székesfehérvár, I may help with delivery.
The wooden coffee table shown in the picture is optional.

General
Manufacturer: Sony

Model: TA-1130

Type: Integrated amplifier

Years of manufacture: 1971 - 1974

Made in: Japan

Color: Front silver

Remote control: no

Power consumption: 280 W max.

Dimensions: 400 x 149 x 327 mm (Wxhxd)

Weight: 13 kg

Original price approx.: 1'698 DM

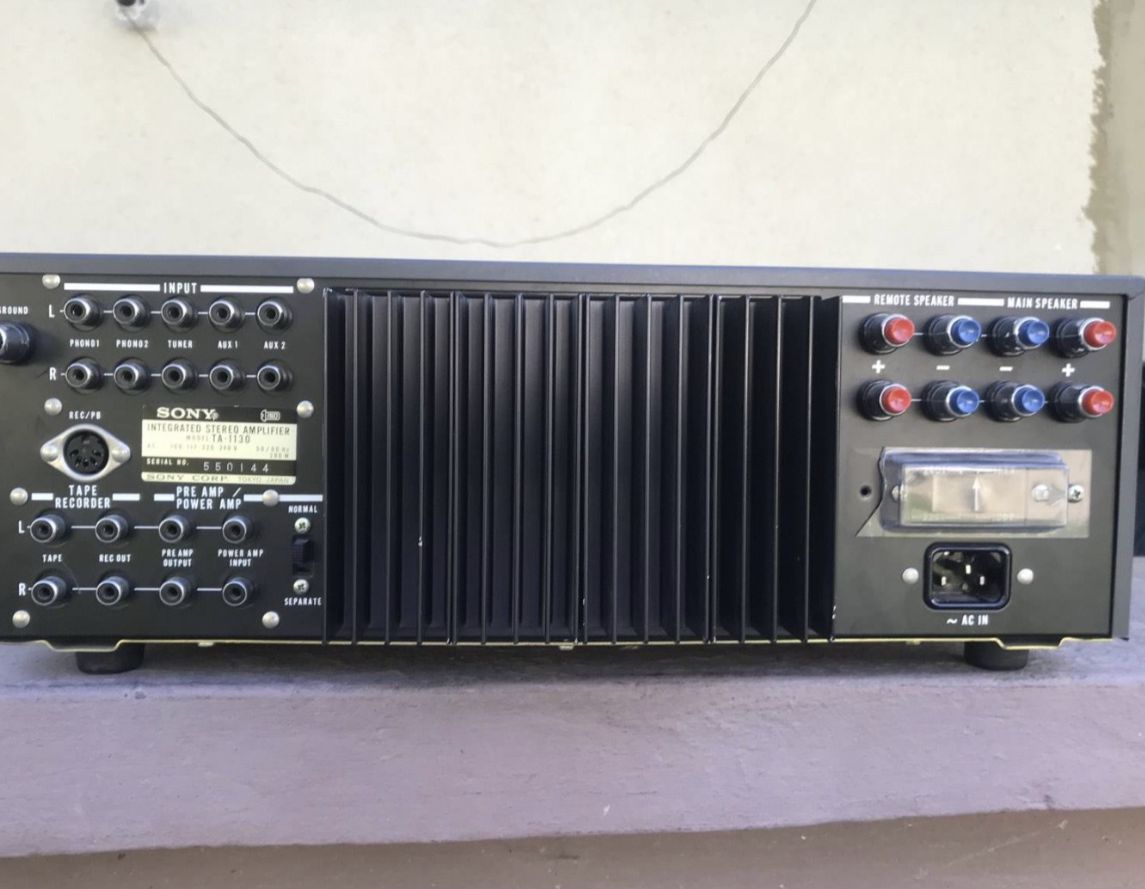

ConnectionsNumber of inputs:

Phono 1, 2 MM: 1.2 mV / 47 kohm

Tuner: 130 mV / 100 kohm

AUX 1, 2: 130 mV / 100 kohm

Tape Play 1, 2: 130 mV / 100 kohm

Tape Play 1 DIN: 130 mV / 100 kohm

Main In:

Number of Outputs:

Tape Rec 1, 2: 150 mV, 10 kohm

Tape Rec 1 DIN: 30 mV, 82 kohm

Pre Out: 1 V, 5 kohm

Headphones (6.3 mm jack)

2 pairs of loudspeakers

Technical Data

Continuous power:

8 Ohm: 2x 50 W (RMS, 20 - 20'000 Hz), 2x 65 W (RMS, 1'000 Hz).

4 Ohm:

Dynamic power

8 Ohm: 2x 100 W

4 Ohm:

Total harmonic distortion: 0.1 %

Attenuation factor: 100 (8 Ohm)

Frequency response:

Phono RIAA: 30 - 15'000 Hz, ? 0.3 dB

High Level: 10 - 200'000 Hz, + 0 dB, - 2 dB

Signal to noise ratio:

Phono MM: 70 dB

AUX, Tape: 90 dB

Tone control:

Bass: ? 10 dB at 100 Hz

Treble: ? 10 dB at 10 kHz

Loudness: yes, + 8 dB at 50 Hz, + 3 dB at 10 kHz

High Filter: - 6 dB / octave above 7 kHz

Low Filter (Subsonic): - 6 dB / octave below 100 Hz

Muting:

< ;br>Special Features

Pre- and power amplifier separable
